Products

Watch the video for understanding our incinerators.

MODEL CX

model CX

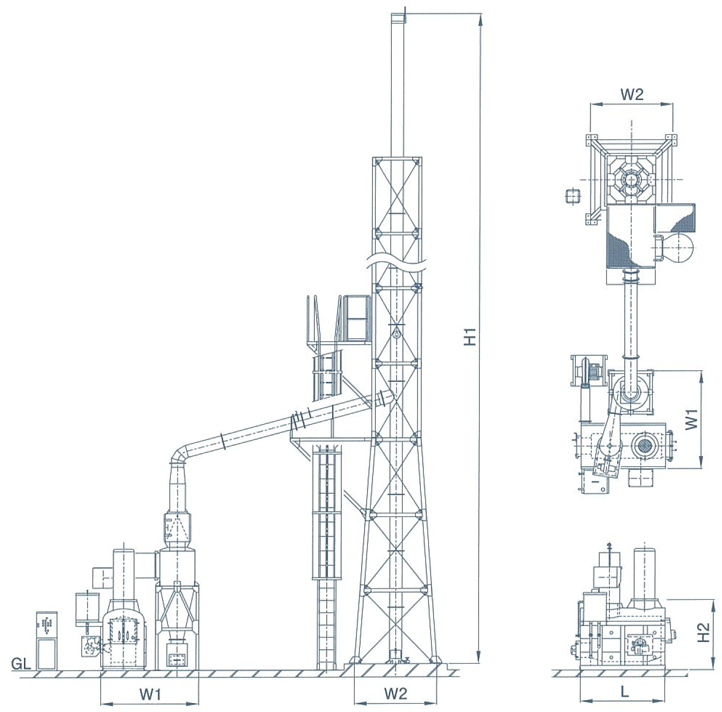

model CX print

CHUWASTAR's advantages
  • Smokeless incineration
  • High temperature combustion
  • Quick incineration
  • Various wastes can be incinerated together
  • Excellent durability
  • Heat recycling system, Utilization of hot water
CHUWASTAR's standard equipment
  • Second funace, heat proof up to 1100°C
  • Ignition & After burner
  • Gas treatment device
  • Cyclone dust collector
  • Water level control & alert system
CHUWASTAR's structure
  • Fixed floor combustion method
  • Water-jacket cooled structure
  • A forced air supply method

■Spec

Model name Capacity kg/h Hearth m2 Furnac capacity m3 Inlet size mm Setting area Source Output kw Working weight Kg Vapourised water volume l/h
CX-1 40~58 0.58 0.94 550×500 2375×2050 200V 2.20 2,570 120
CX-2 75~85 0.67 1.36 600×500 2575×2350 200V 3.70 3,940 180
CX-3 100~118 0.8 1.74 650×550 2750×2500 200V 5.50 5,260 240
CX-4 125~163 1.08 2.22 700×600 2975×2650 200V 7.50 7,210 300
CX-5 150~188 1.35 3.02 800×650 3200×2800 200V 11.00 10,950 360
